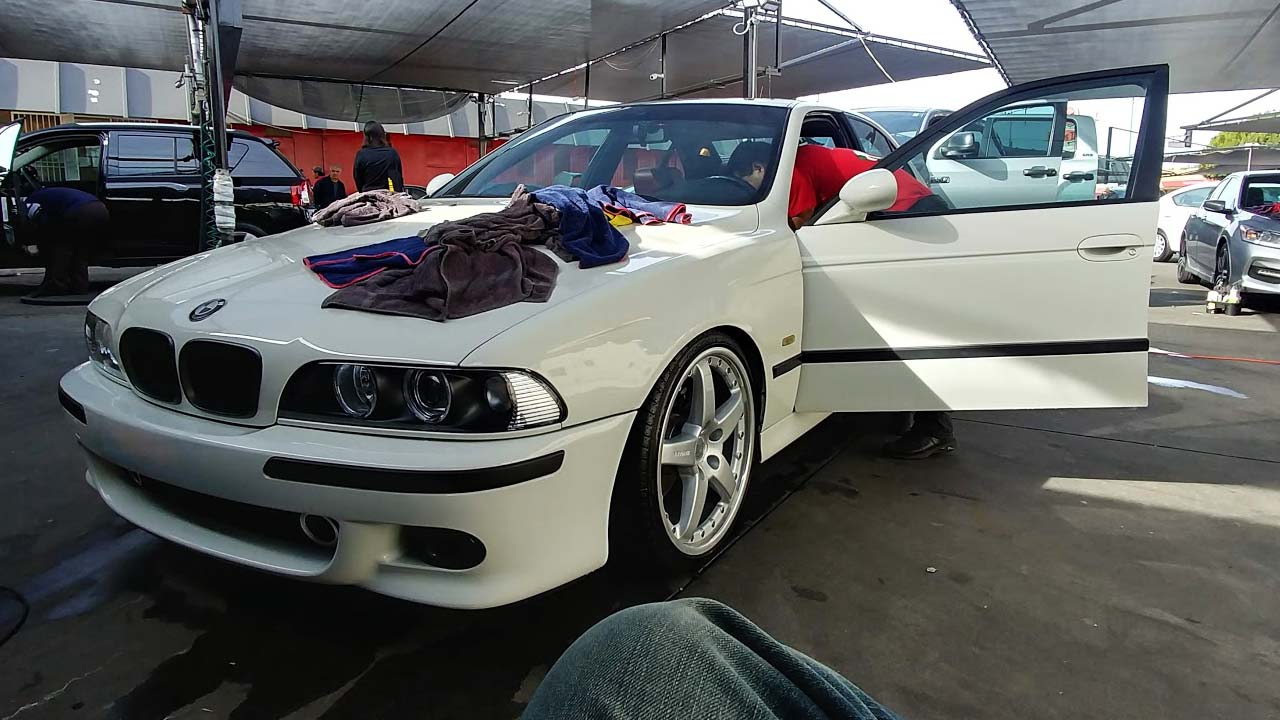

Front end conversion

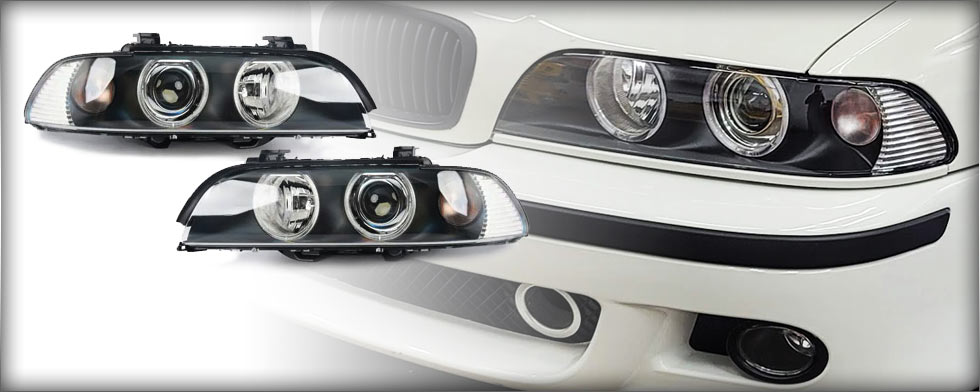

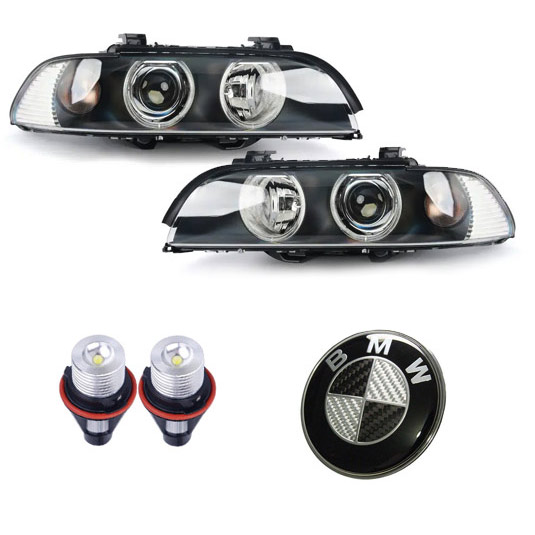

Headlights:

• 03' Facelifted Euro headlights
• LED Low Beams
• LED Angel Eye bulbs

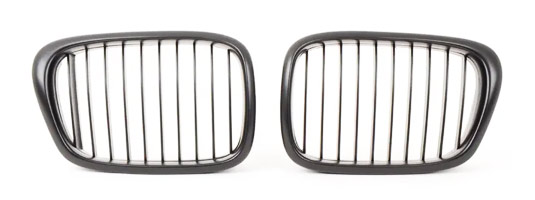

Grille & Emblem

• Gloss black grille
• Carbon fiber hood emblem

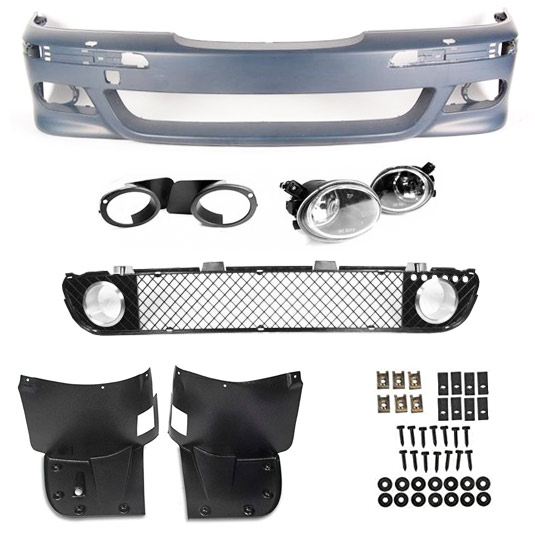

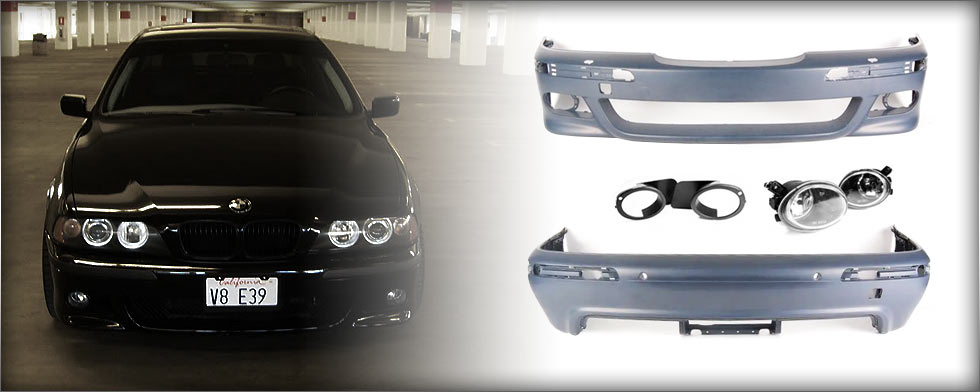

Bummper, liners and lighting

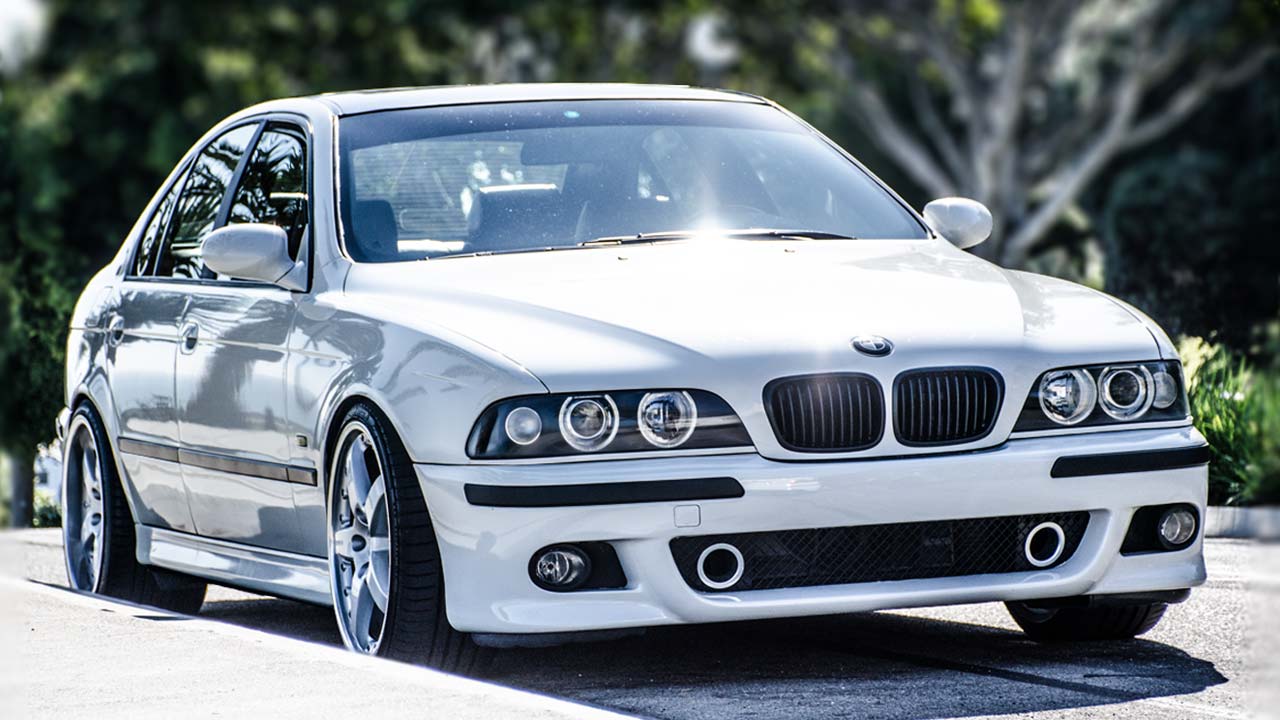

Complete front end face lift and M5 conversion, including:

• E39 M5 Front bumper cover

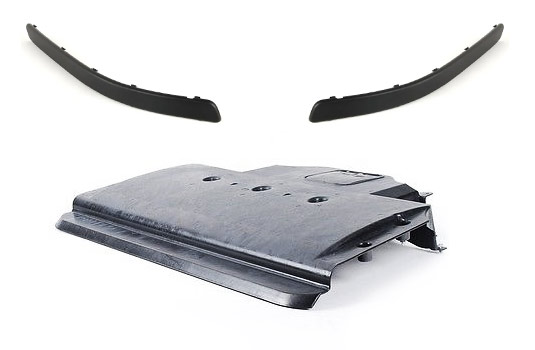

• Bumper trim moldings
• E39 M5 Fog lamps and surround trim
• ECS Tuning lower grille with aluminum brake ducts.
• E39 M5 front fender liners and installation kit.
• E39 M5 underbody belly pan.

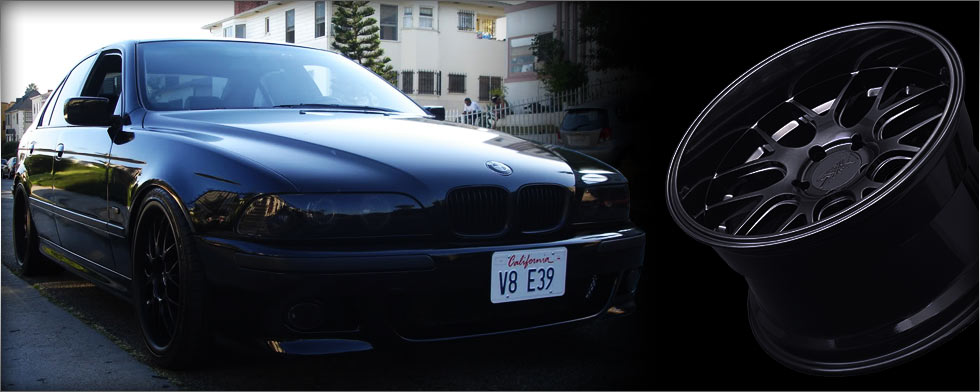

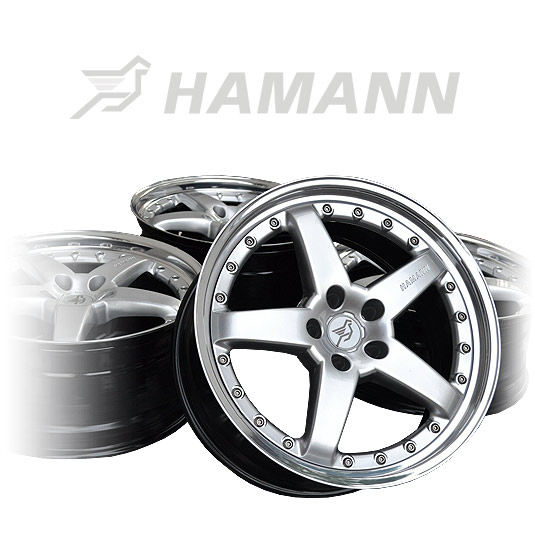

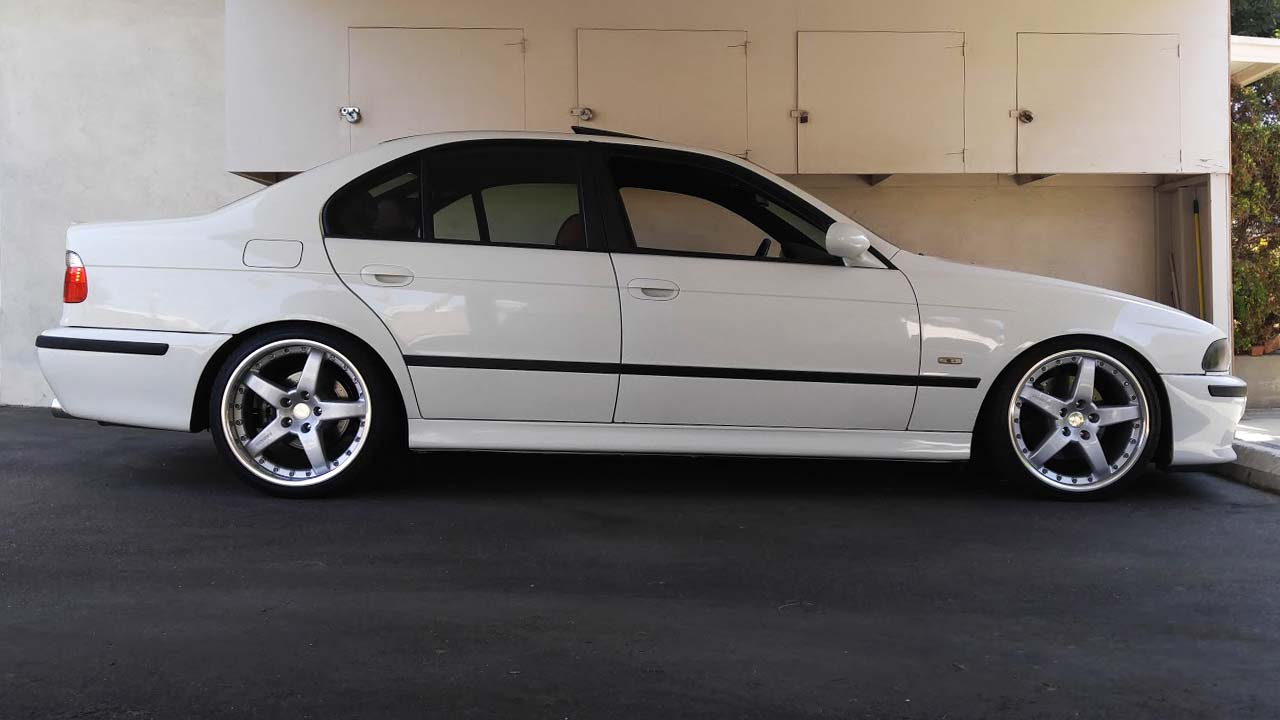

Wheels

Staggered Hamann PG 2s (by OZ Racing).

• 2 Peice Modular Construction
• Silver face with polished INOX stainless steel barrel
• Dimensions: 8½ J x 19 RA, 10 J x 19 RA
• Tires: Front - 245/35 ZR 19 Rear - 275/30 ZR 19

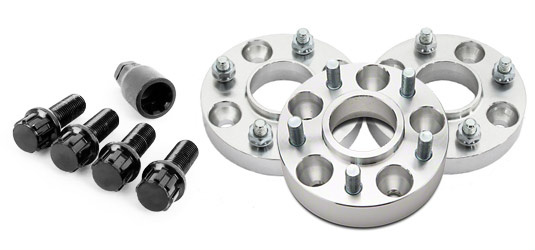

Wheel Spacers

Custom machined hub centric adapter:

• Front - 7.62cm 5/120 bolt pattern
• Rear - 3.8cm 5/120 bolt pattern

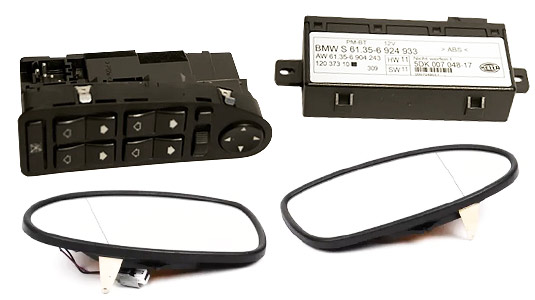

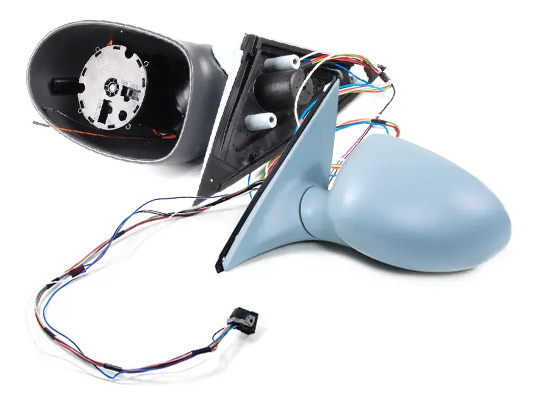

E39 M5 Mirror conversion

• Auto folding e39 M5 mirrors
• Heated blind spot mirror glass
• Master window switch for auto folding mirrors
• Folding mirrors module

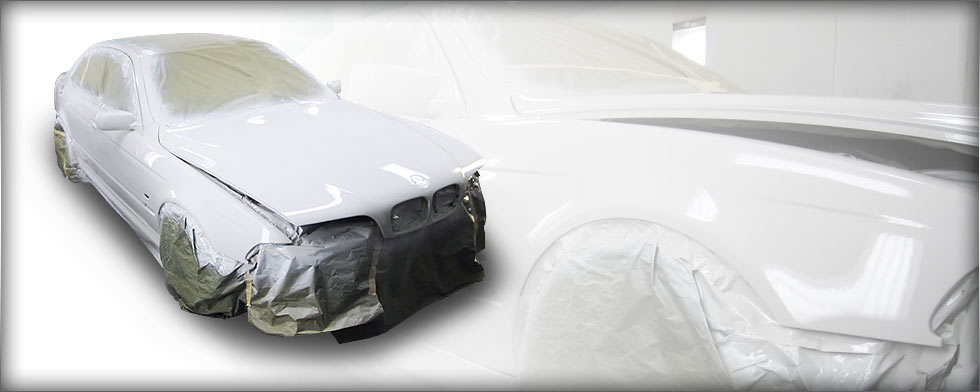

Custom two tone paint job

• Main - Alpine White II 218 (not available on the E39)
• Accents – Jet Black 668

Materials

• BASF DTM Primer
• BASF Glasurit Base coat
• BASF UV KLARLACK Clear Coat

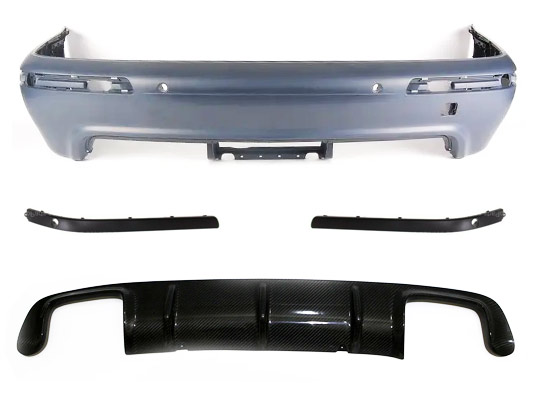

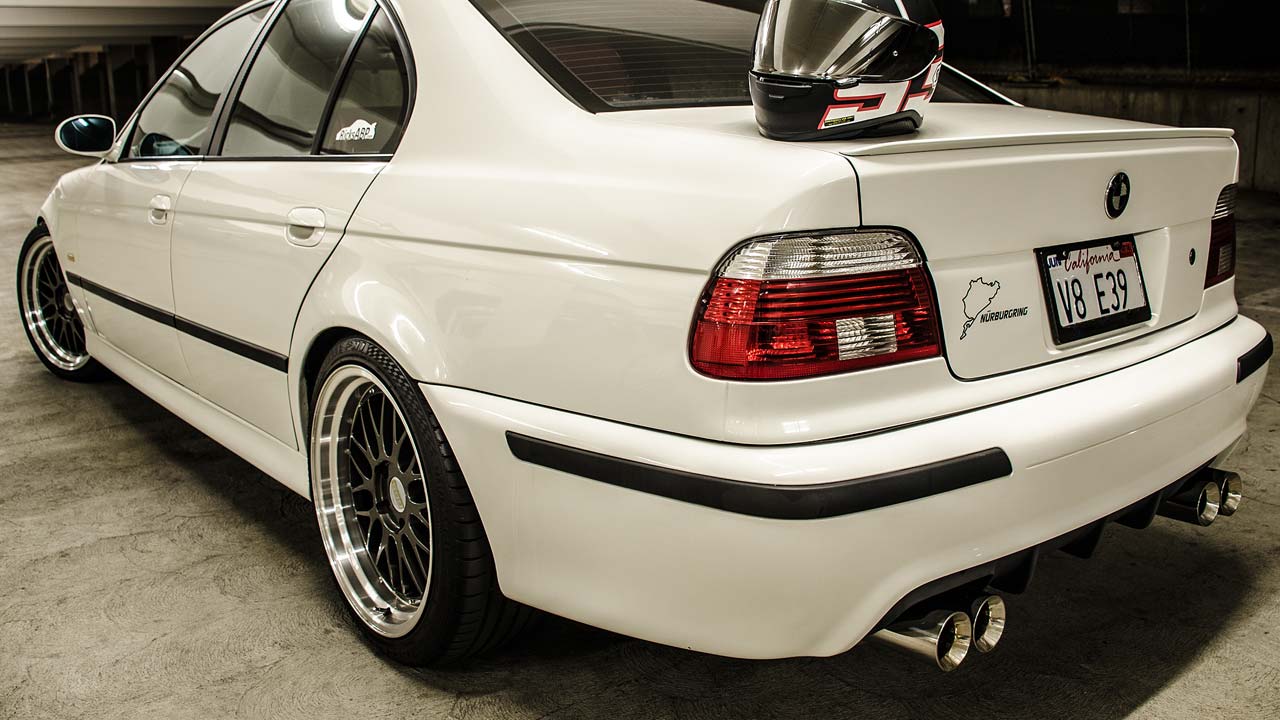

Rear Bumper

• E39 M5 Rear Bumper
• Bumper trim moldings
• Exhaust heat shielding

Diffuser

• Handmade finned rear diffuser by Slimbones
• Diffuser installation kit

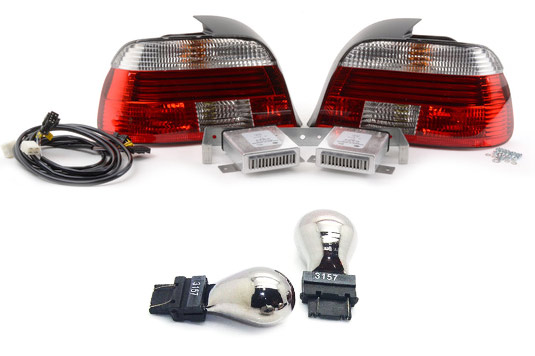

Tail Lights

• OEM facelifted tail lights
• Stealth turn signal bulbs
• 2.5cm depth adjustment to taillight pockets

Reverse Camera

• EONON Wide angle reverse camera retrofit
• Stealth turn signal bulbs

Trunk Spoiler

• OEM E39 M5 trunk spoiler

Badging

• Carbon fiber trunk emblem
• Model de-badge

Lighting

• LED license plate lights
• Voltage Resistors for code mitigation

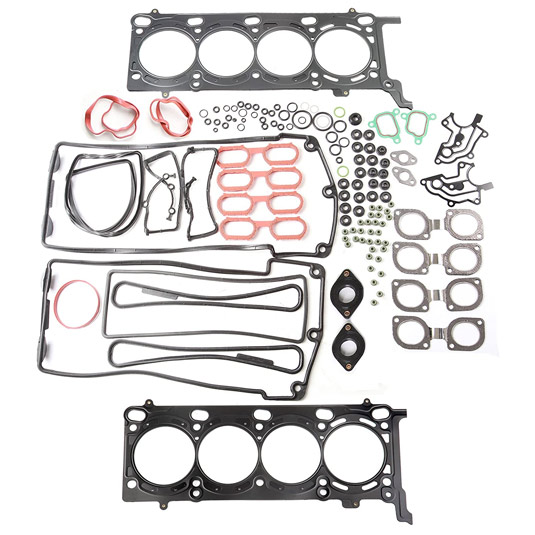

Internals

Upgraded gaskets and refreshed internals during complete engine rebuild, including:

• Timing chain guide rails
• Timing chain tensioners
• Piston rings
• All coils and spark plugs
• Upgraded intake manifold with larger diameter runners
• Valve cover gaskets, banks and internal
• Valve cover nut grommets and bolt seals
• VANOS and corresponding solenoid gasket
• Upper timing cover and timing chain gaskets
• Camshaft and crankcase o-rings
• Intake manifold gaskets
• Exhaust manifold gaskets
• Complete cooling and brake system overhaul
• Fuel injectors and corresponding o-rings
• Pre-VANOS throttle body
• All pulleys and belts
• Belt tensioners
• Valley pan gasket
• … and more

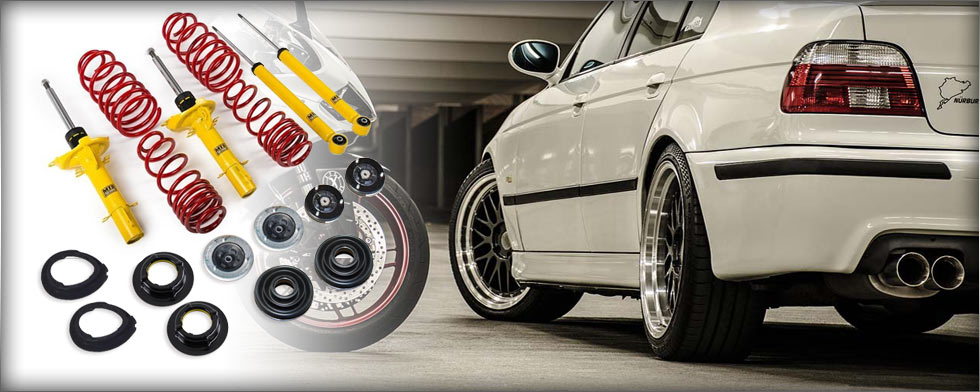

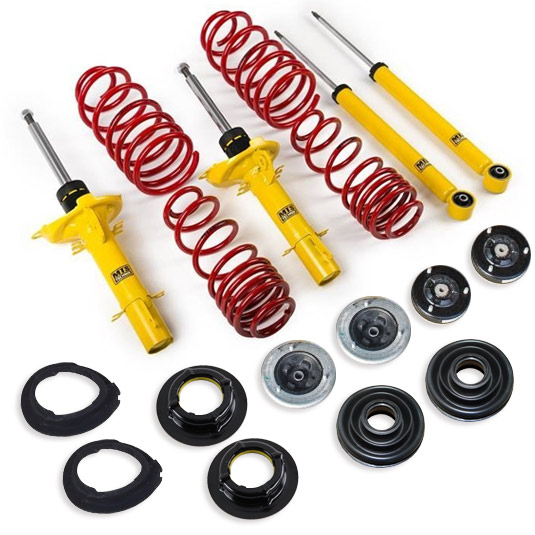

Front Struts

• KONI Sport #8741-1372SPORT
• McPherson Strut Housing
• Twin tube low pressure gas Adjustable Shock Absorber
• Externally adjustable dampding stiffness

Rear Shocks

• KONI Sport #8240-1156SPORT
• Twin tube low pressure gas Adjustable Shock Absorber

Springs

• B&G Suspension S2 Sport Lowering Springs
• Progressive spring rate
• 1.6in front and 1.0in rear drop
• 20-25% stiffer over OEM

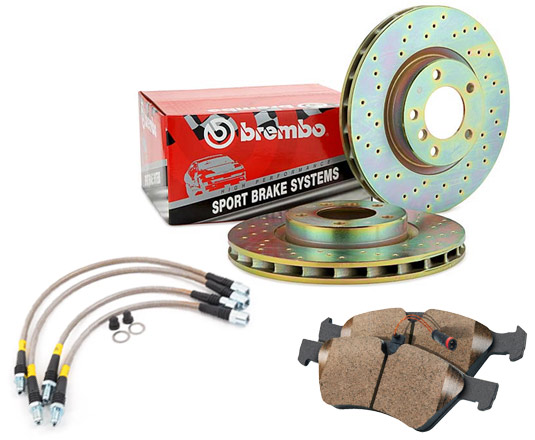

Rotors

• Front: 324mm Brembo cross-drilled & vented sport rotors
• Rear: 294mm Brembo cross-drilled & vented sport rotors

Pads

• Akebono Euro Ceramic Pads

Brake Lines

• StopTech stainless steel brake lines

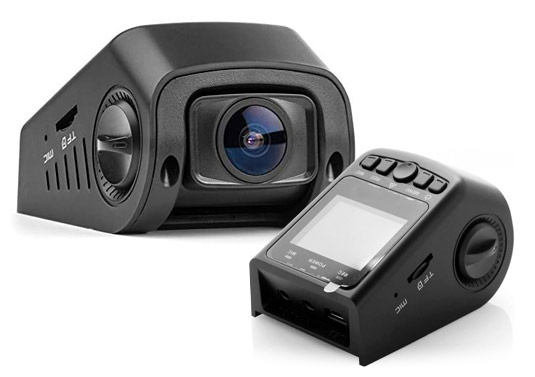

Black Box B40 A118 Stealth Dash Cam

• 170° wide angle lens
• 1080p at 30fps
• Motion detection
• Night vision
• G-Sensor

Wiring

• Ignition switch hardwire
• Capacitor backup

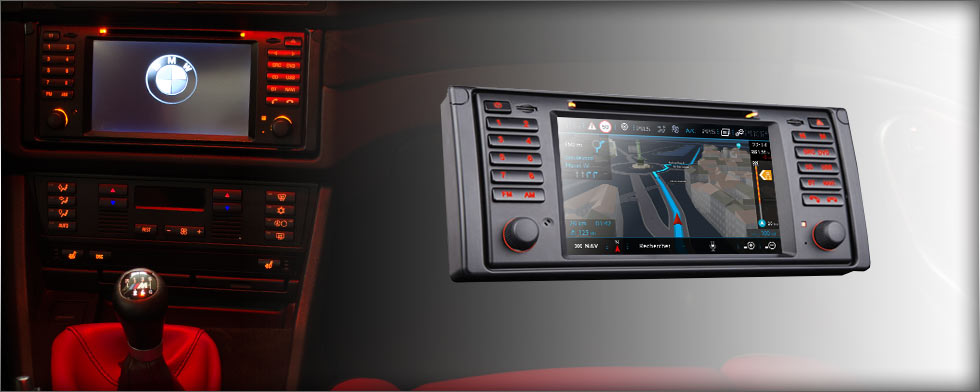

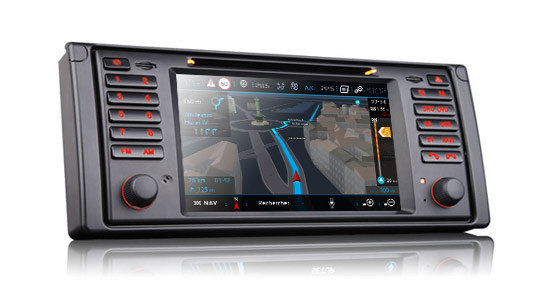

Eonon D5124F

7 inch Eonon touch screen head unit made specifically for the E39. Made to match the original BMW radio texture and lighting.

• Specifically made for the E39
• Can-bus integration
• Windows OS
• GPS, Bluetooth, USB, SD Card, AUX, DVD
• Steering wheel controls
• Rear view camera
• Auto dimming

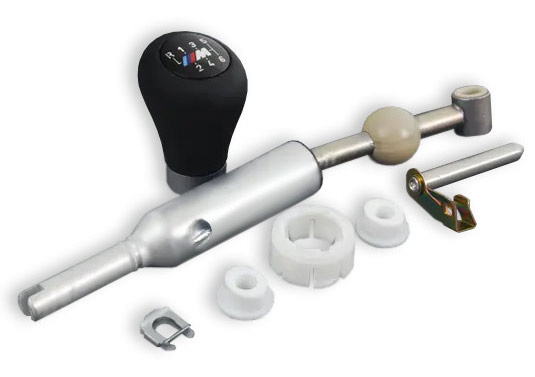

Shifter

• OEM E60 545i short shifter kit
• Custom gloss black E46 ZHP shift knob
• E39 M5 dowel and carrier pins
• E39 M5 shifter and ball bushings
• Custom upholstered shifter boot

Transmission

• Compete transmission rebuild
• CDV delete
• E39 M5 clutch

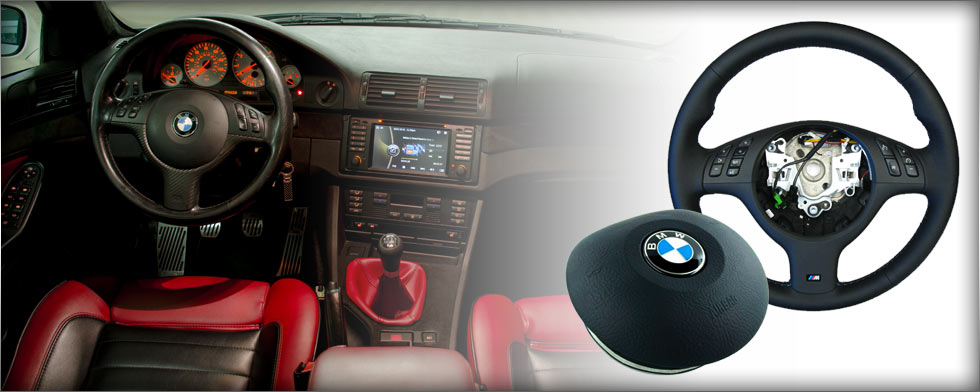

Steering Wheel Retrofit

Single stage to dual stage steering wheel retrofit.

• E46 M3 Steering Wheel
• E46 M3 Airbag
• E46 M3 Clockspring

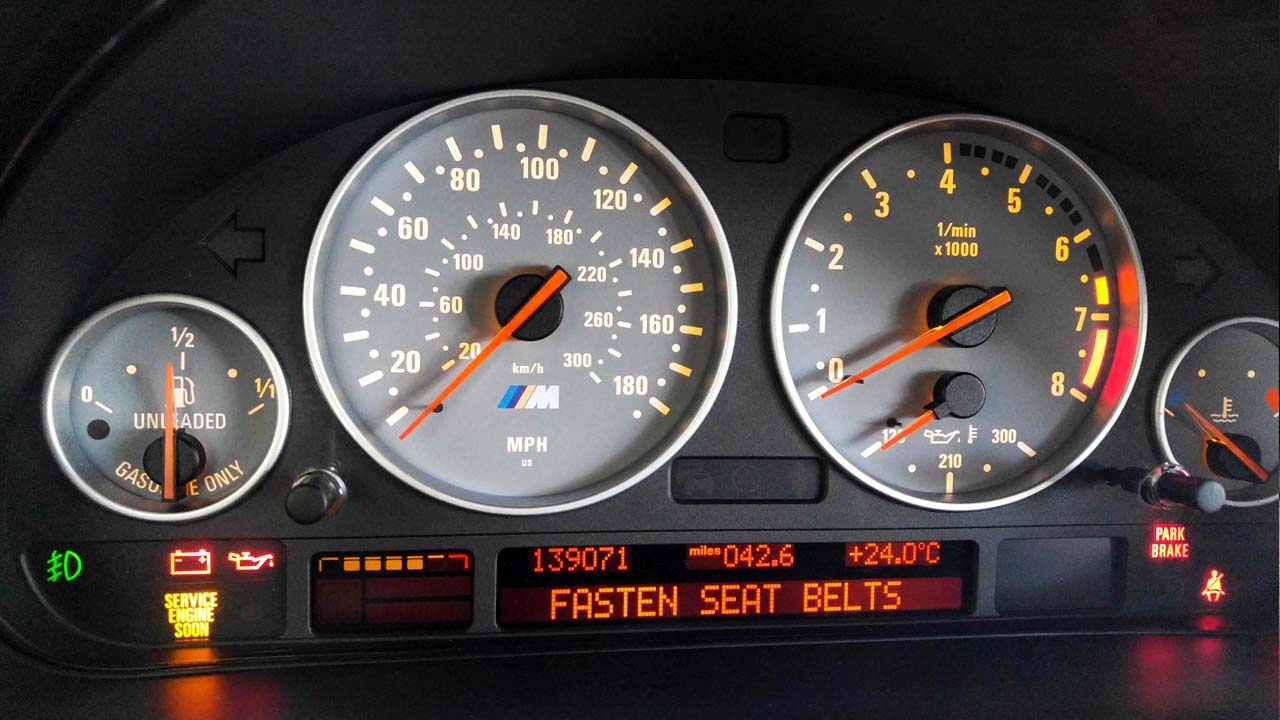

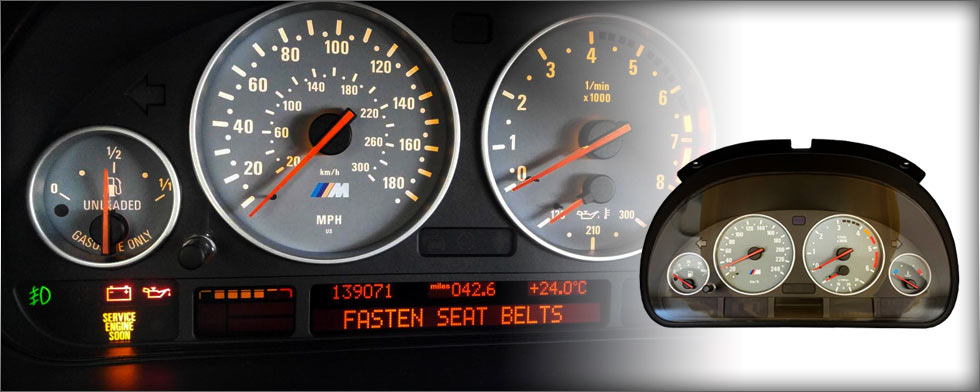

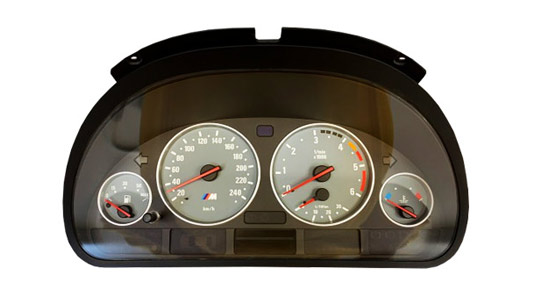

Instrument Cluster

• E39 M5 gauge cluster retrofit.

BSW Stage I

The Bavsound (formerly BSW) speaker upgrades are designed and tuned for each individual BMW model. Widely regarded as the definitive sound system upgrade in the BMW enthusiast community. This was the starting point of this vehicle’s sound system upgrade path. The Stage I kit includes:

• BAVSOUND 130mm Front Midbass (x2)
• BAVSOUND 130mm Rear Midbass (x2)
• TW-7 20mm Front Tweeters (x2)
• TW-7 20mm Rear Tweeters (x2)

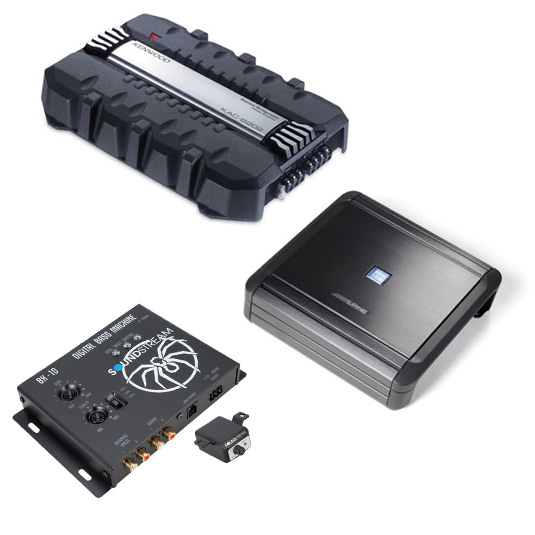

Amps, EQs and Crossovers

To support the BSW Stage I system, the added Subwoofer and clean up the output from the new headunit, the factory amplifier was replaced by an Alpine 4 channel amp, and a bass equalizer was added between the 4 channel and dedicated subwoofer amp.

Components:

• Alpine MRV-F300 4 Channel Amp
• Kenwood KAC 6202 2 Channel Amp
• Soundstream BX-10 Bass Equalizer
• SSL SQ4 Equalizer

The entire vehicle audio system was rewired in order to use the low level RCA preouts of the headunit with better shielded speaker wires in order to eliminate alternator wine (a common E39 issue when redoing the sound system and retaining the lower gauge factory wiring).

The goal was to have a balanced audio experience, without overpowering bass, without doing extensive modifications to the door panels and rear shelf. This was one of the reasons for going with BSW’s solution, as their speakers are specifically made and tuned for the E39 chassis, and can be mounted in the factory locations without any modifications to the vehicle body.

Below you can see a general wiring diagram for most of the components in the system. This predated the SSL SQ-4 Equalizer, which was added at a later date between the 4 channel Alipne and the BSW speakers to provide a more granular control over the sound output.

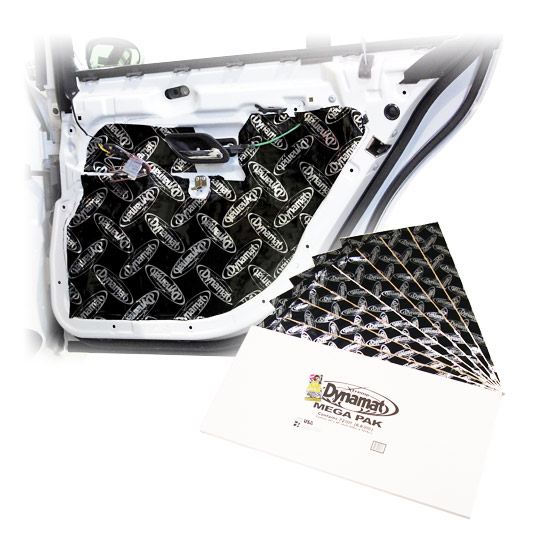

Sound Insulation

To eliminate any remaining rattles and provide noise isolation (lower the amount of road noise coming in and minimize sound leakage to the outside world) all 4 doors, the trunk lid and trunk area were all covered in Dynamat Xtreme sound deadening material.

What's Dynamat?

"Dynamat Xtreme is a thin, super sticky butyl rubber bonded to an aluminum alloy skin. It is formulated with Vector™ Chemistry, and makes Dynamat Xtreme the most effective sound control material available. Dynamat Xtreme is very simple to cut and install.

The butyl rubber and heavy aluminum will stretch and contour better than any other product on the market without tearing. It will conform easily to all interior surfaces, and the sticky butyl rubber will adhere to a surface and stay in place without any special surface prep, and without leaving any odor or dripping material..."

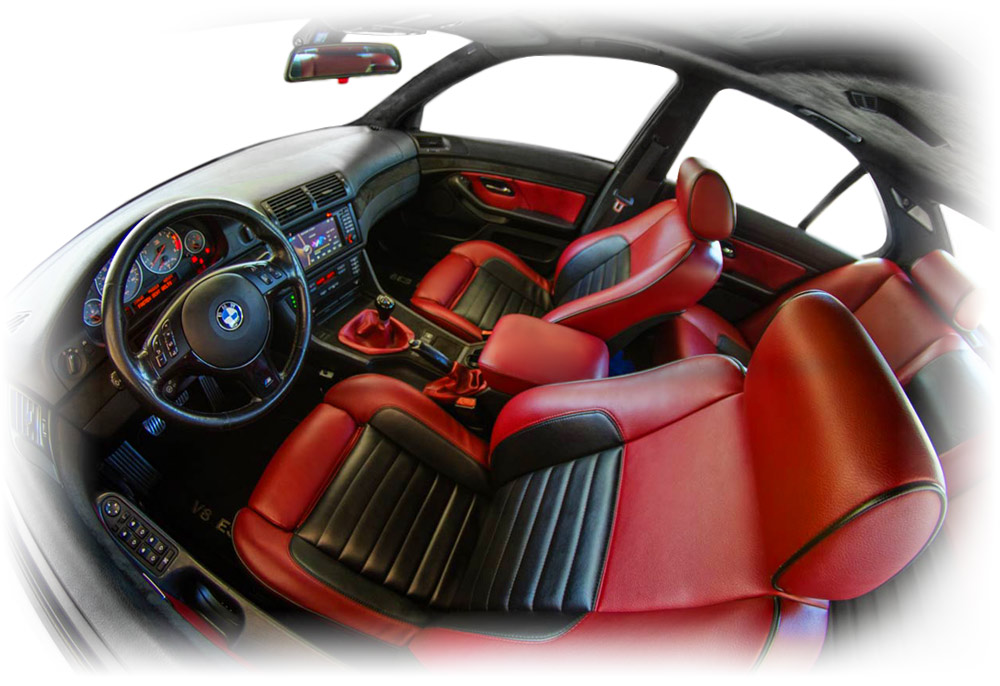

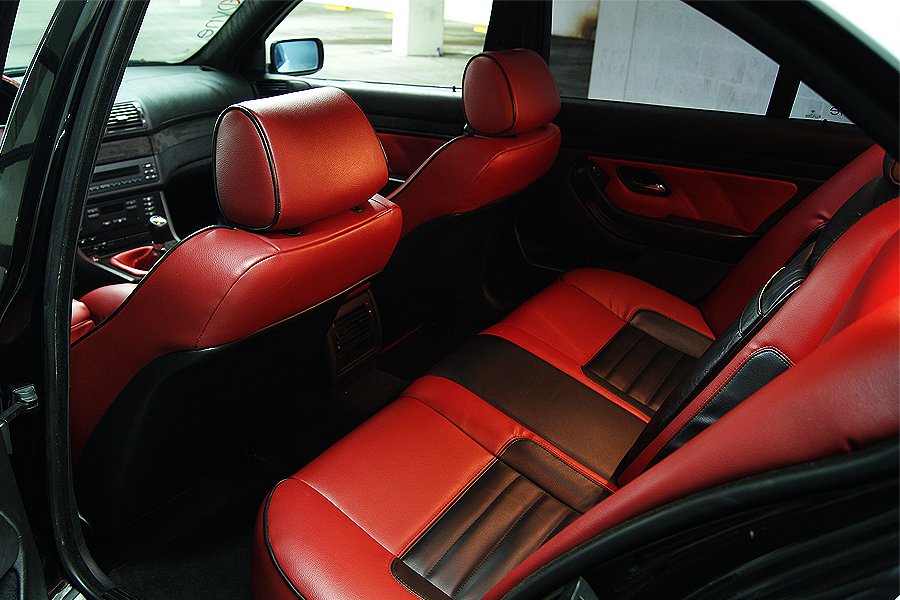

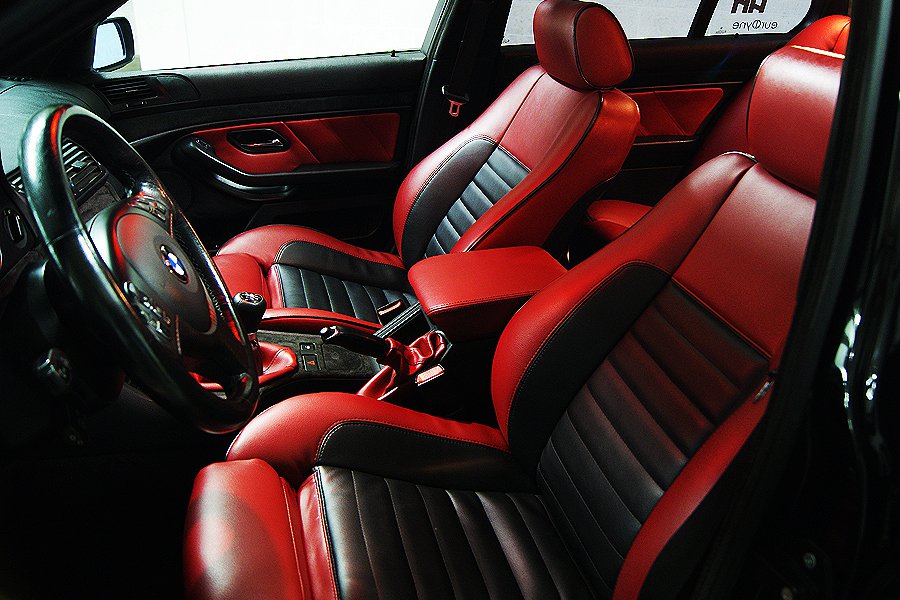

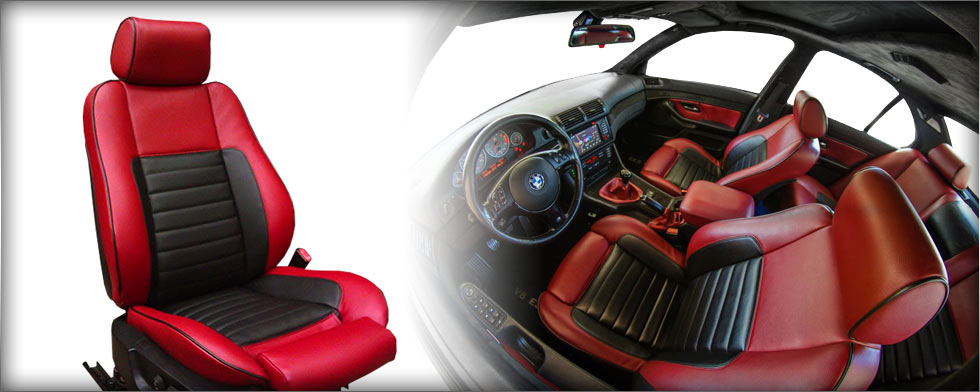

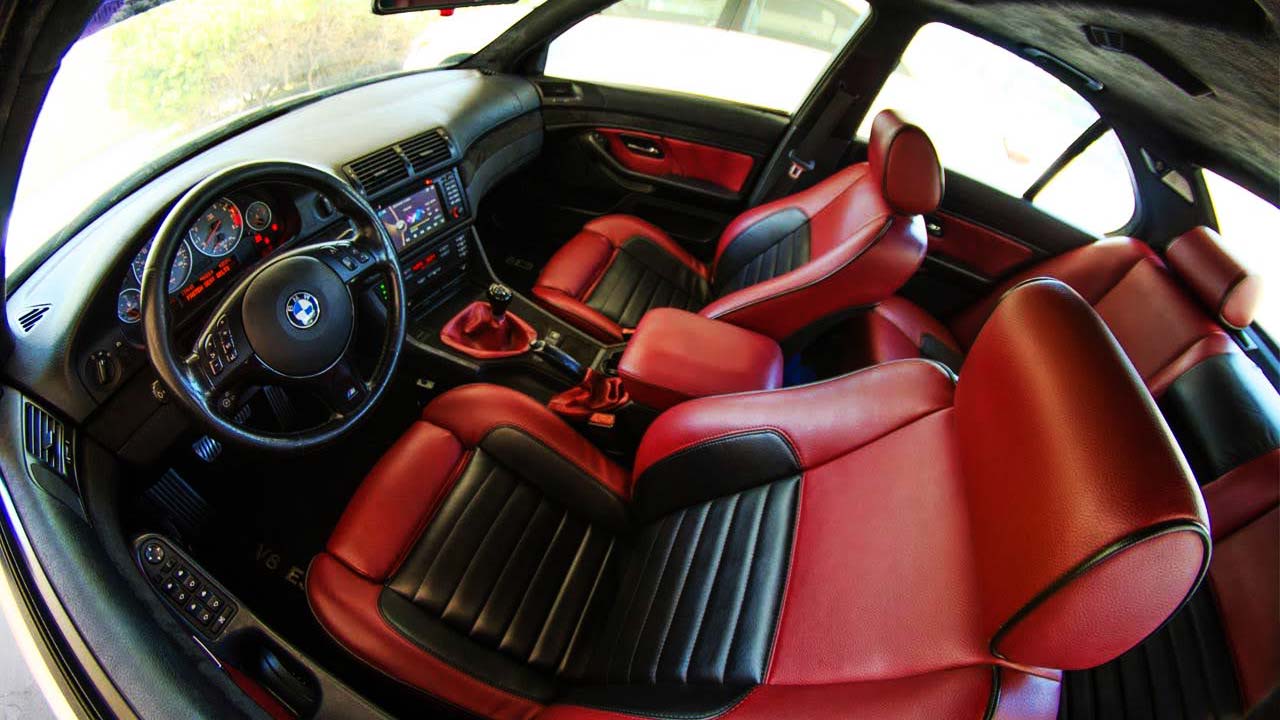

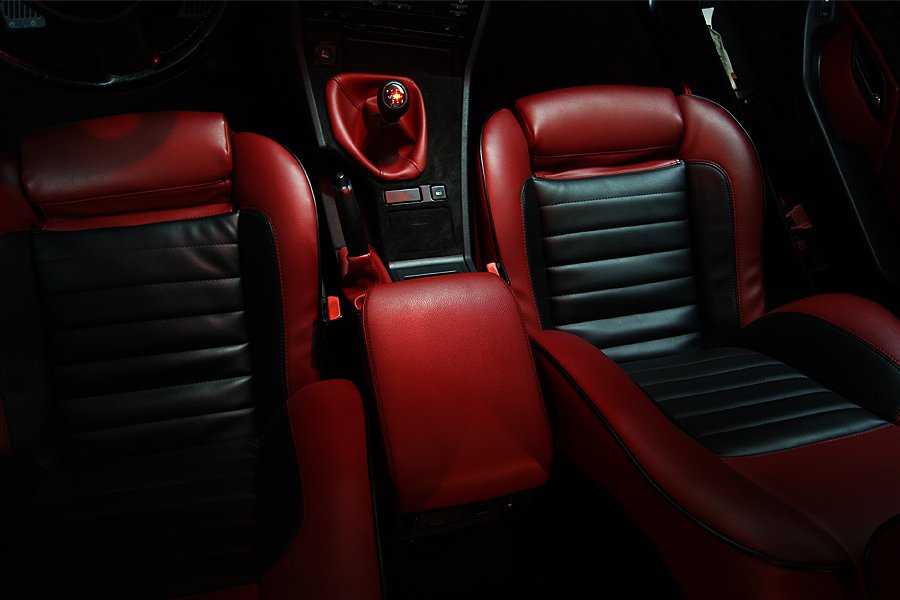

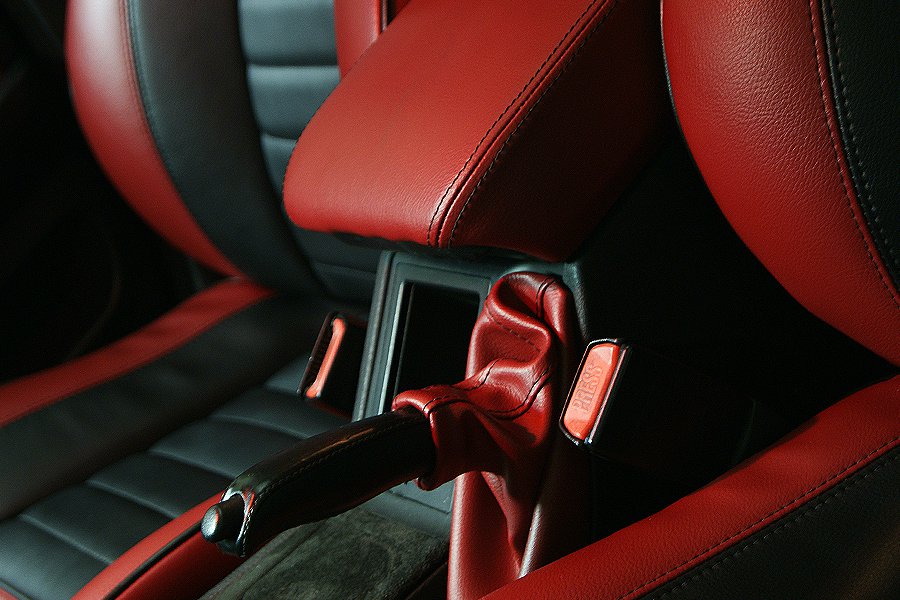

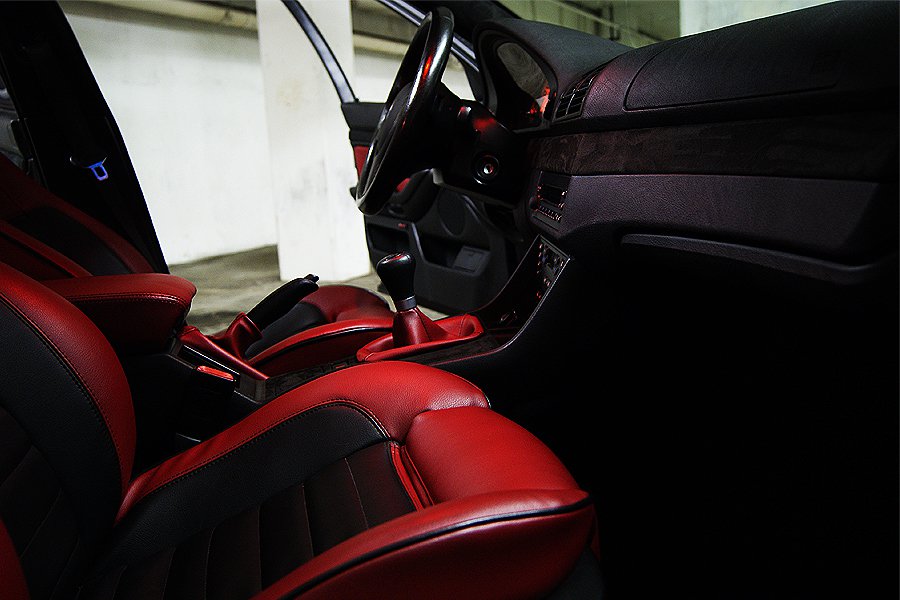

Seats

• Custom designed 2 tone seats with pipe stitching
• New seat padding all around
• Refreshed underlying hardware

Headliner

• Suede headliner
• Suede visors
• Black handles and interior lights trim

Door Panels

• Matching red/black upholstery
• Suede door trim

Center Console

• Suede center console trim
• Matching red center armrest, handbrake and shifter boots

Floor

• Custom embroidered floor mats

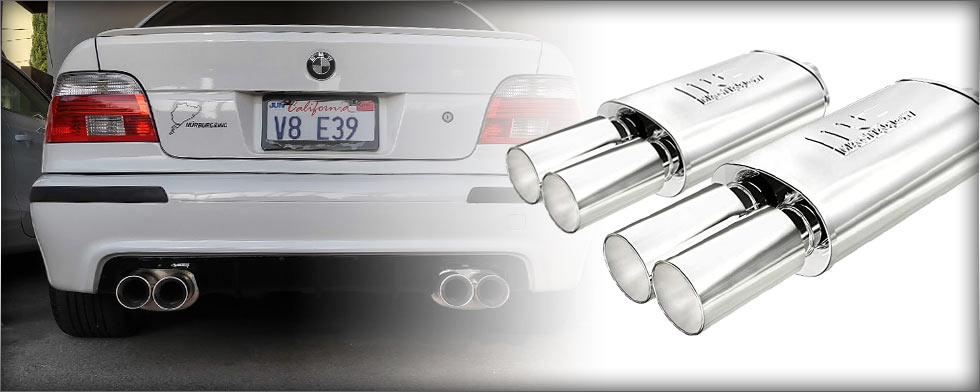

Cat-back exhaust system

• Dual Magnaflow 14816 stainless steel mufflers
• Resonator delete
• X-Pipe
• Additional reinforced mounting hardware

Rear Floor

• Spare tire delete
• Rear floor body modification to fit dual muffler

Sound Sample
